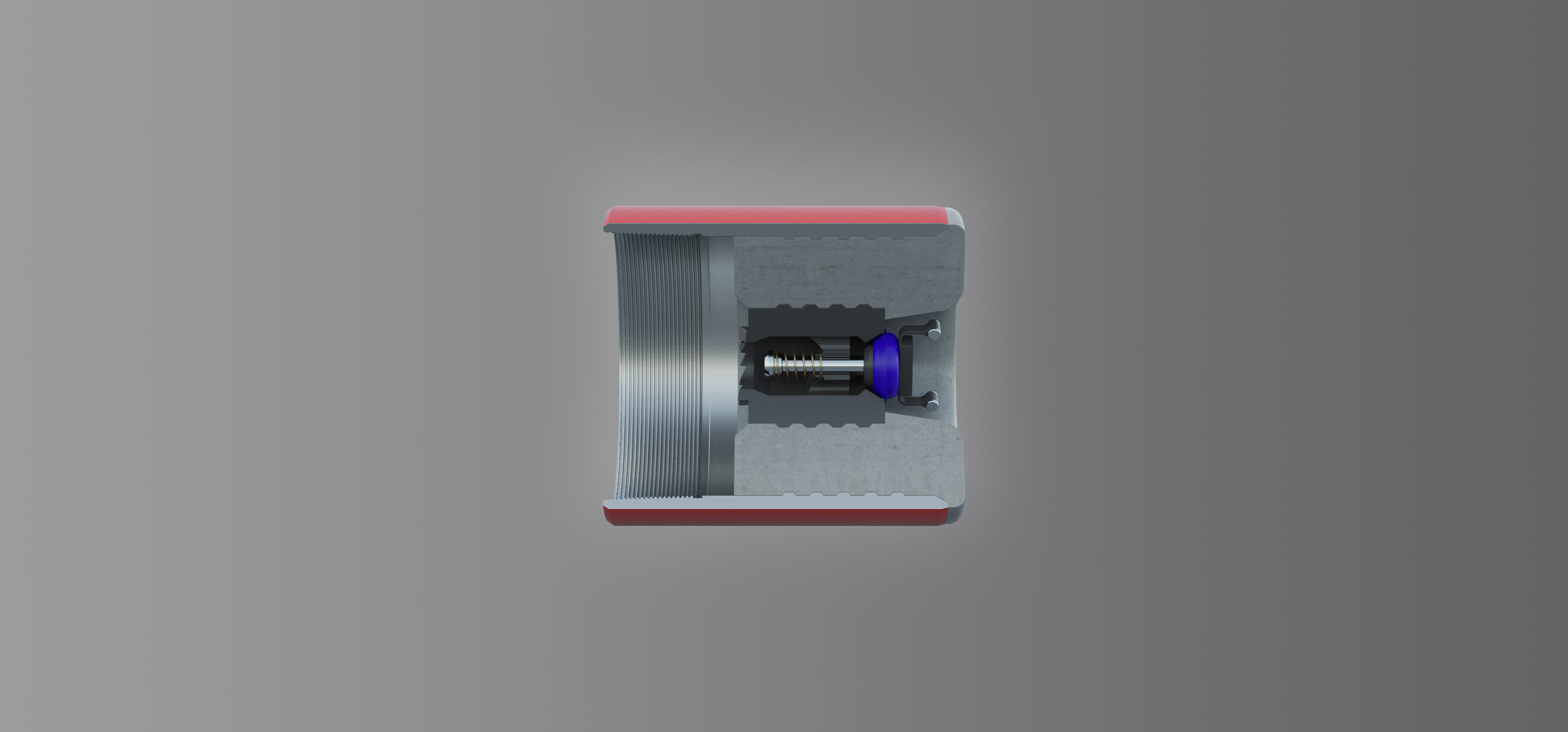

Single valve float shoe with concrete guide nose Type 200 and modifications

Send a request

Single valve float shoe with concrete guide nose Type 200 and modifications

Designed for equipping bottom of the casing string to direct it in the wellbore and protect from damages during running in the well. It prevents the reverse flow of the cement slurry from the annulus into the pipe string during well cementing. It provides quick and easy drilling out with PDC bit.

Available sizes: 101.60 mm (4'') to 508.00 mm (20”).

Thread connections: OTTM, OTTG, BTC, TMK UP™, VAM TOP®, NEW VAM, VAsuperior®, VAGT®, JFEBear®.

Application:

  • Vertical, directional and horizontal wells.

Features:

  • The selected formula of concrete allows the shoe nose to withstand high axial and radial loads;
  • Reliable and time-proven Real Seal II™ float valve, incorporated in the shoe, withstands high back pressure and continuous flushing with high sand content fluid;
  • Auto fill-up mechanism provides automatic casing string fill-up with fluid while running into the well;
  • Safe Lock™ non-rotation mechanism prevents the cementing plug from rotating in the process of drilling out;
  • Design of the shoe allows its use in wellbore of any curvature;
  • Design of the shoe is adjusted for drilling out with PDC bit.
ADDITIONAL OPTIONS TYPE 200 TYPE 201 TYPE 202 TYPE 203
Basic version
Auto fill-up
Safe Lock™ non-rotation mechanism
